HILL-16-16-05 FILLING MACHINE (8000 BPH) : HIGH SPEED for water filling line machine/automated water filling machine

FOB Reference Price:Get Latest Price
$15,000.00 - $24,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
4 KW
Model Number:
HILL 16.16.05
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Indonesia, Thailand, Malaysia
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Malaysia
Condition:
New
Application:
Food, Beverage, Chemical
Packaging Type:
Cartons, Cans, Bottles
Packaging Material:
Plastic, Paper, Wood, Pet
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
4 KW
Place of Origin:
Selangor, Malaysia
Brand Name:
Hill Machinery SDN BHD
Dimension(L*W*H):
L2500*W2100*H2500
Weight:
4000kg
Certification:
-
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High-accuracy
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Product name:
HILL- 16-16-05
Filling valve:
Food grade stainless steel 304
Rinsing, working table:
Stainless steel 304
Amount of working position:
16 rinsing heads 16filling heads
Production capacity:
7000-8000 bottles
Pressure of air source:
0.7Mpa
Air consumption:
1m3/min
Rinsing water pressure:
0.2-0.25Mpa
Bottle range:
Diameter:50~110mm; Height:186~310mm
Dimension:
L2500*W2100*H2500
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Port
Klang Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

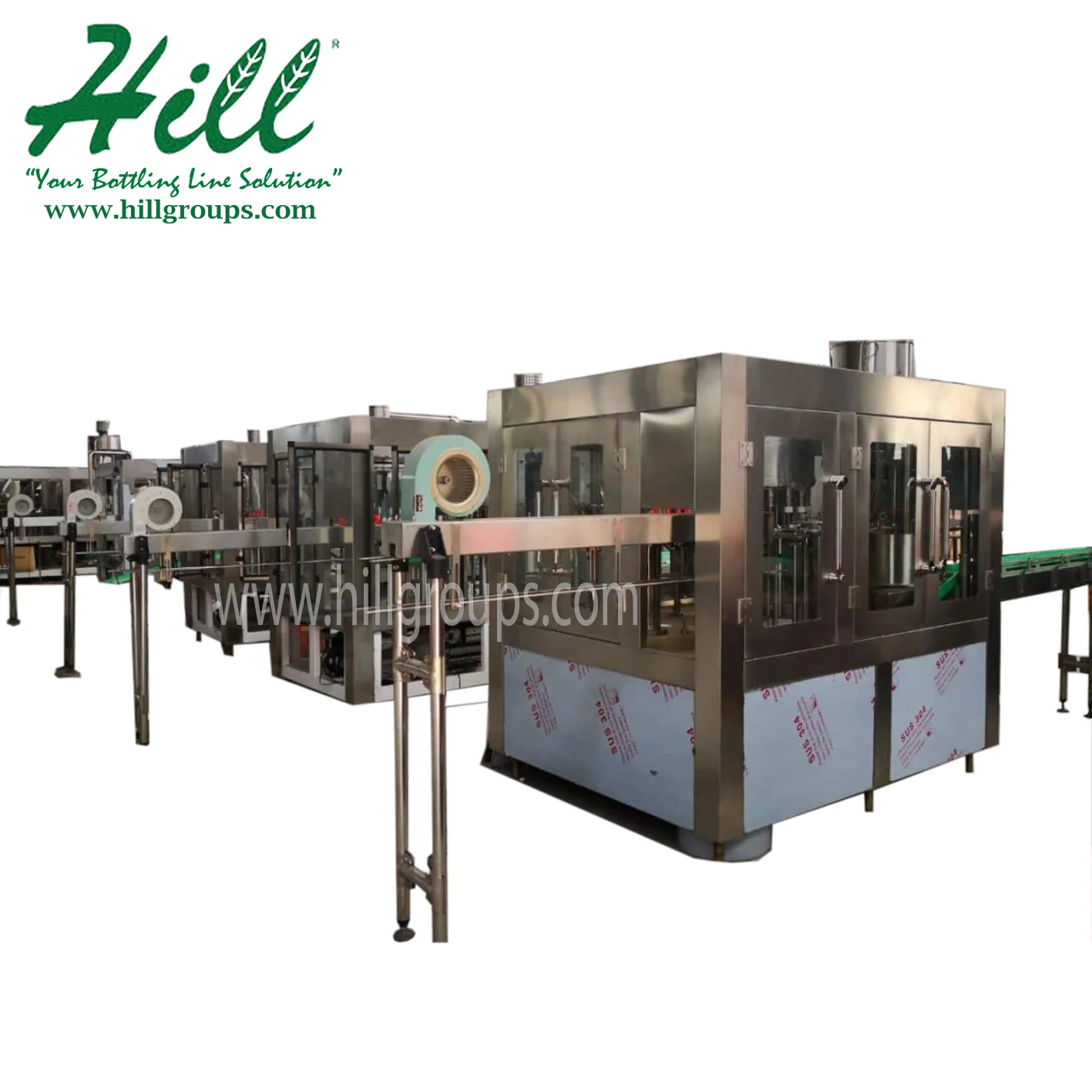

HILL-16-16-05

HILL-16-16-05 three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.


Application

1. The equipment is used in production of non soda drink of fruit juice, fruit wine, mineral and pure water packed in polyester bottles with the integration of washing, filling and capping.

2.  the most advanced technology from Japan and Germany is employed in the design.  The fixed-gravity liquid surface filling is used so that the filling is fast and the amount of liquid is accurately controlled and the dropping or leaking can be avoided.

3.  Spring cramps are used in bottle washing process.

4.  The magnetic torque is used for bottle capping.

5.  The entire machine is controlled by PLC with touch screen as the human-computer interface.

6.  Clear indication of speed and production capability, allowing easy investigation.



Specification
Technical parameter
Number of working
16 rinsing heads 16filling heads
position
5 capping heads
Capacity
7000-8000 bottles
Pressure of air source
0.7Mpa
Air consumption
1m3/min
Rinsing water pressure
0.2~0.25Mpa
Power of main motor
4KW
Dimension
2500MM*2100MM*2500MM (L*W*H)
Total weight
4000KG
Material
stainless steel 304
Detailed Images

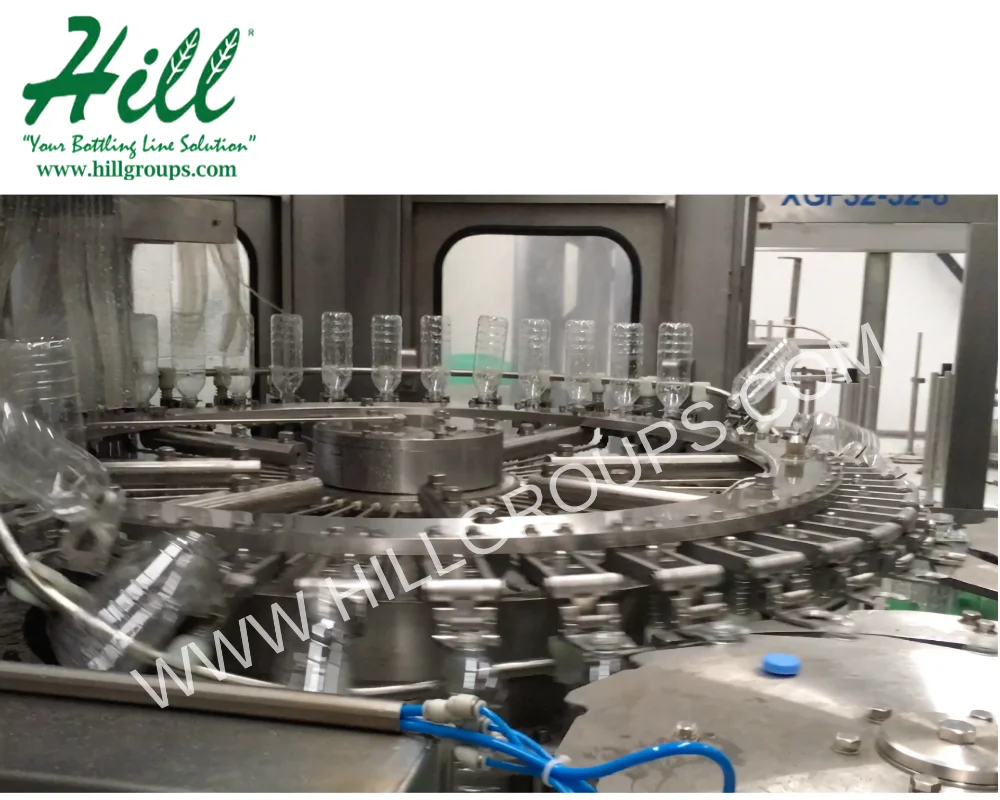

Rinser

The rotary wheel is a fully AISI304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

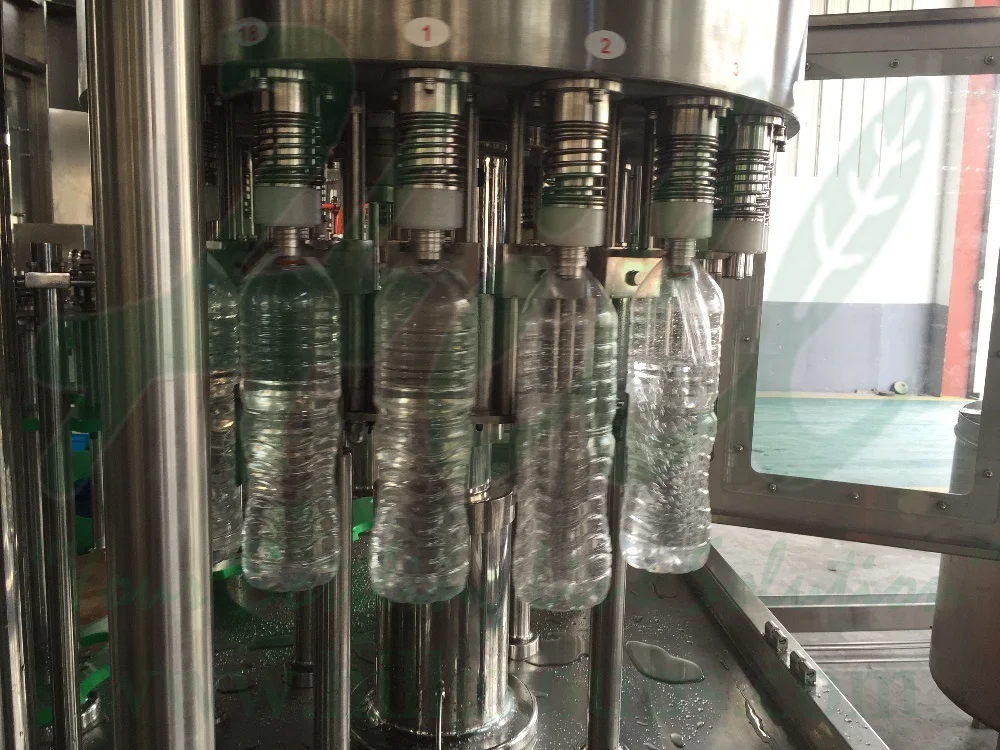

Filler

The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.

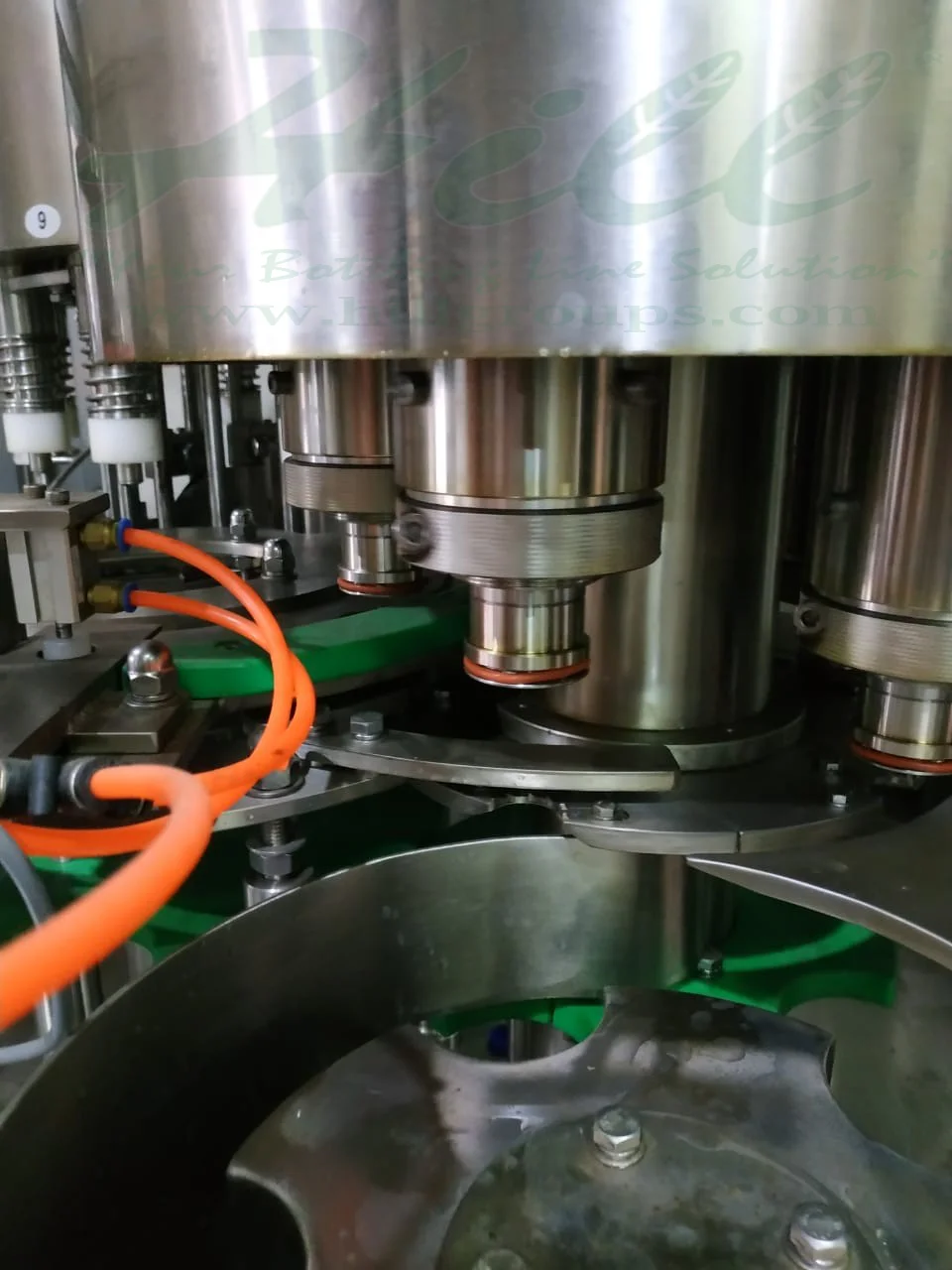

Capper

The capper is most precise part in 3 in 1 filling machine, because the quality of machine is important to running credibility and product quality. The sealing machine in our company has strongpoint as follows:

Packing & Delivery

Packing Details : Packing, wooden case
Delivery Details : 30 days after order and bottle sample received

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Demonstration and trial before shipment

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Technician standby to help anytime

Our Company

(WORKSHOP BRANCH IN MALAYSIA) located in the state of Selangor has the largest economy in Malaysia in terms of gross domestic product.
Hill Industries SDN. BHD. No.34-38, Cuepacs 4A street, Taman Koperasi Cuepacs, 43000 Kajang, Selangor.

HILL MACHINERY SDN BHD brings together a large number of liquid (beverage) industry's top technical talent, and domestic and foreign research institutions, professional institutions, etc. also maintained close relations of cooperation. At the beginning of the establishment, the company established the only business direction for beverages, daily chemicals, spices and other liquid packaging machinery field. With fixed assets of more than 4702 million Malaysian Ringgit, company was founded more than 10 years to, we actively promote the imitation innovation, the introduction of the principle of combining innovation, independent innovation, enhance the management and technology of uninterrupted to drive the company's sustainable development!

All members will be firmly adhering to the "customer centered, striving for the people, and never stop" the spirit of enterprise. Focus on the domestic and foreign customers to provide "safe, energy-efficient, efficient" liquid (beverage) equipment and "high-quality, fast, personalized" service! Company was established so far, has been successfully for many domestic and foreign liquid (beverage) factory to provide quality equipment and perfect service, products are sold to many countries and regions around the world.

Hill machinery is a professional enterprise which integrates designing, producing, marketing, and offering the turn-key project to the customers. Based on many years of research and production experience, we absorb the advanced technology from the fellow-trade at home and abroad to major in producing all kinds of large and medium beverage machine. We are sincerely providing our customers the following products; automatic washing, filling, and capping assembly line for the purified water, spring water, fruit juice, lactic acid drink, carbonated drink, wine, flavoring, pulped drink, etc, the complete water treatment device and the automatic washing, filling, and capping assembly line for the 3-5gallon drink water.

HILL people will cherish the glorious dream of "do the world's most competitive liquid (drink) packaging machinery supplier", is committed to to providing with the most competitive solutions for the global liquid (drink) factory, to create maximum value for customers around the world!

The company will always take the "revitalization of national liquid (beverage) packaging machinery" as its mission, in order to achieve the transformation and upgrading of Malaysia from the "manufacturing power" to "manufacturing power" in the historical mission and hard work!

Our Team

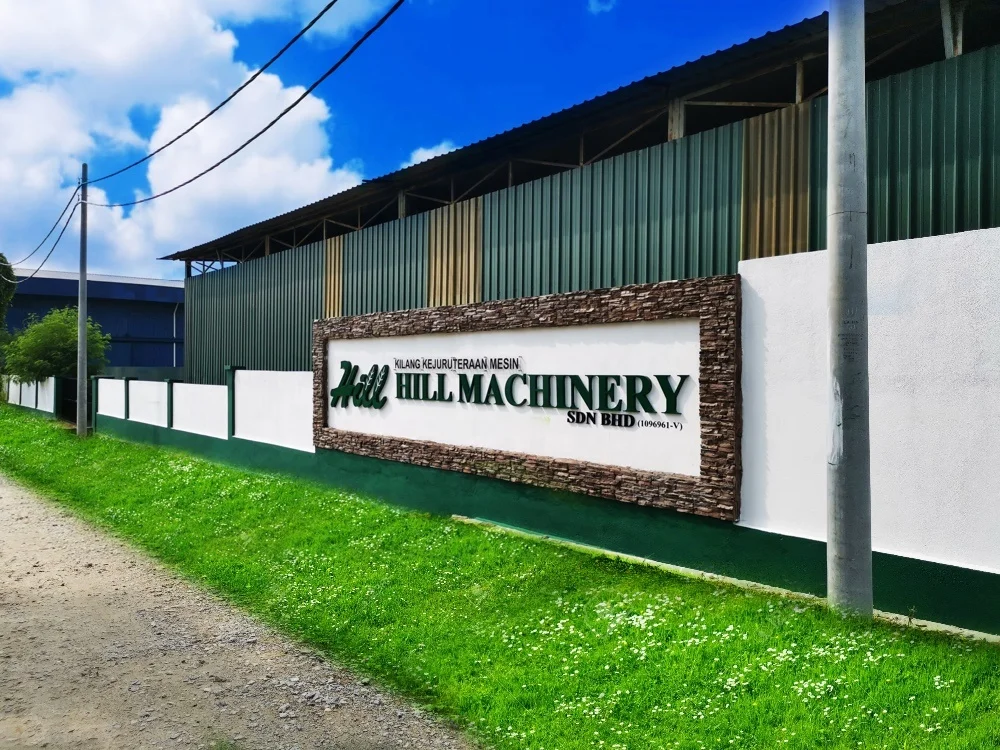

Our Factory

Hill Machinery Sdn.Bhd. were located at Semenyih, Selangor.


Hill Industries Sdn.Bhd with ten years of field experience, sustained growth and continuous expansion both expertise and scale, we provide full coverage for industrial beverage filling systems, including Injection Machine, Blowing Machine, Filling Machine, Labeling Machine and Packaging Machine.
