NEW Arrival !! Full Automatic Bottling Line For Sparkling Water 14.12.05

FOB Reference Price:Get Latest Price
$15,000.00 - $18,500.00 / Set | 1 Set/Sets (Min. Order)
Power:
3.57KW
Model Number:
Full Automatic Bottling Line For Sparkling Water 14.12.05 Monoblock Filling Machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Retail
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam, Philippines, Indonesia, Thailand, Malaysia
Showroom Location:
Viet Nam, Philippines, Indonesia, Thailand, Malaysia
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Packaging Material:
Plastic, PET
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
3.57KW
Place of Origin:
Selangor, Malaysia
Brand Name:
Hill Machinery Sdn Bhd
Dimension(L*W*H):
2400mm*1700mm*2300mm
Weight:
2000kg
Certification:
-
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High Productivity
Machinery Capacity:
4000BPH
Filling Material:
Water
Filling Accuracy:
1-2%
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
PLC, Bearing, Engine
Product name:
Full Automatic Bottling Line For Sparkling Water 14.12.05
Filling valve:
Food grade stainless steel 304
Rinsing, working table:
Stainless steel 304
Amount of working position:
Rinsing 14, filling 12, capping 5
Production capacity:
4000BPH
Rinsing water consumption:
0.8T/H
Bottle height:
150~310mm
Bottle diameter:
50~100mm
Suitable cap:
Plastic Screw Cap
Total power:
3.57kw
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Insure the costumer receive the machine with good condition without any disable,we packing the machine for protect the machine from water,dust,etc or any hit and shaking.We cover the machine by :
1. Wrap plastic
2. Carton
3. Woods
Port
Klang Port, Malaysia
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

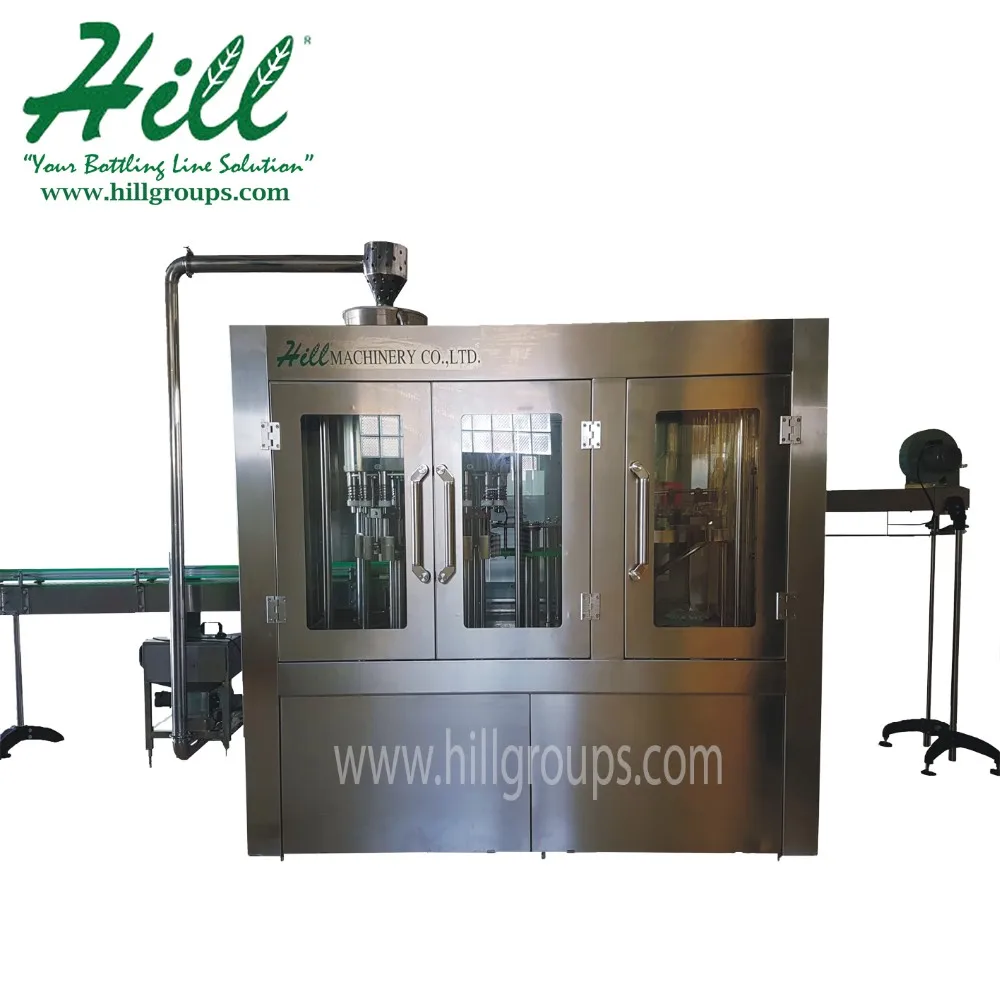

Product Description

HILL 14-12-05

is designed and manufactured based on the latest technology from Germany and Italy, for the demand of technical requirement of beverage production, as pure water and mineral water.

The filling mono-bloc works as follows: Bottles are fed from conveyor chain into the filling machine mono-bloc via star wheel. Bottle clamp installed on the rotary wheel of the rinse will grip bottle mouth and make a 180° turn along a guide track to face the bottle mouth downward. In designated section of the rinse, rinsing water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180° turn along a guide track to resume bottle mouth facing up position. Clean bottles are discharged out of the rinse by a star wheel to feed the filler. After entering the filler, bottles are retained by neck supporting carrier plates, which are actuated by bottle carrier mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism

to further stop venting to complete the filling process. Bottle carrier mechanism is lowered by a cam to disengage filled bottles with filling valves. Then bottles are transferred into the capper by a neck handling star wheel. Anti-rotation blades on capping heads will seize the bottleneck to prevent it from rotation and hold it in a upright position. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting, and disengaging under the control of a cam. A discharge star wheel discharges finished bottles onto discharge conveyor belt to be conveyed out of the filling mono-bloc.

Detailed Images

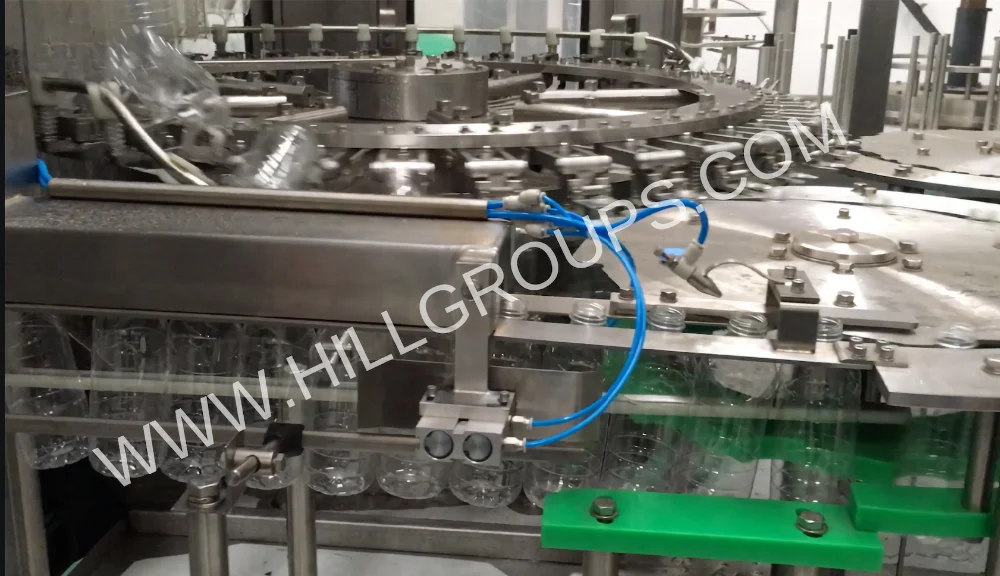

Rinser

The rotary wheel is a fully AISI304 stainless steel welded structure.

The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

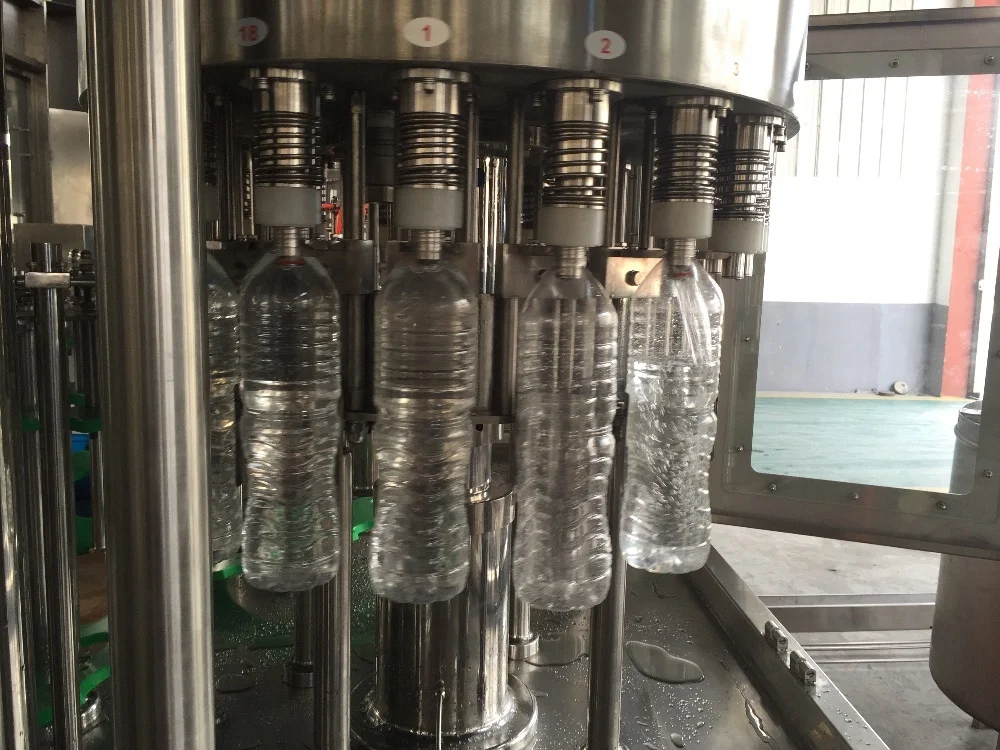

Filler

The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.

Rotary wheel are fully made of stainless steel AISI304.

Filling valves are designed and manufactured with German technology, made of AISI304, featuring high filling accuracy and high filling speed.

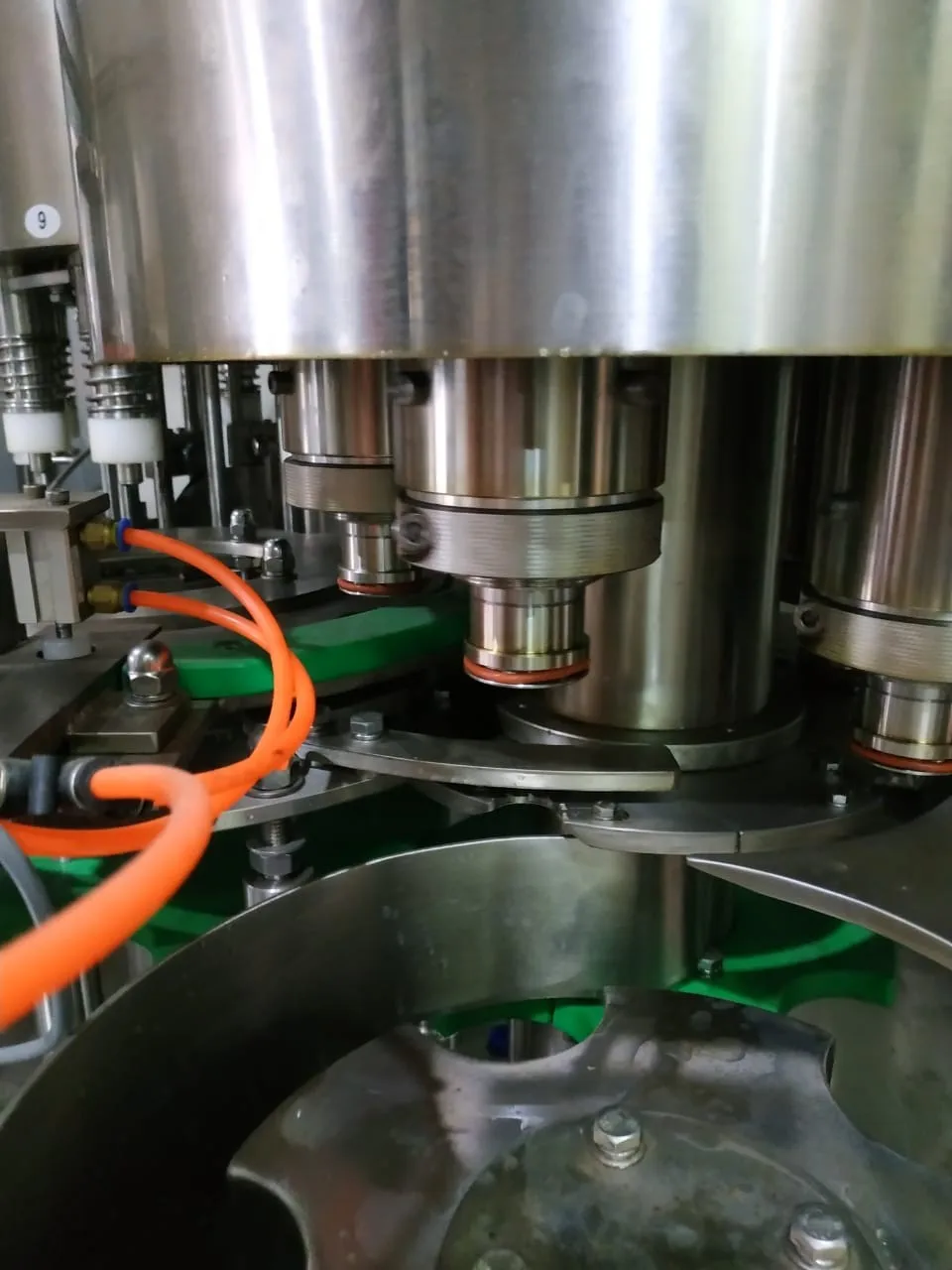

Capper

The capper is most precise part in 3 in 1 filling machine, because the quality of machine is important to running credibility and product quality. The sealing machine in our company has strongpoint as follows:
The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai JiaoTong University, and uses the technology of ZALKIN in France, most advance technology in the world, developed with the experience of asepsis filling machine. For example, Ⅰ) extruding wheel (main part to control the stability when sealing), uses the technology of ZALKIN. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. Ⅱ) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial, which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.

Specification
Technical parameter
Amount of working position
Rinsing 14, filling 12, capping 5
Production capacity
4000BPH
Rinsing water consumption
0.8T/H
Bottle height
150~310mm
Bottle diameter
ф50~ф100mm
Suitable cap
Plastic Screw Cap
Total power
3.57kw
Dimension
2400mm×1700mm×2300mm
Weight
2000kg
Packing & Delivery

Packing Details : Packing, wooden case
Delivery Details : 30 days after order and bottle sample received

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Demonstration and trial before shipment

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Technician standby to help anytime

Our Team
Our Company

Hill Machinery Sdn.Bhd

HILL MACHINERY brings together a large number of liquid (beverage) industry's top technical talent, and domestic and foreign research institutions, professional institutions, etc. also maintained close relations of cooperation. At the beginning of the establishment, the company established the only business direction for beverages, daily chemicals, spices and other liquid packaging machinery field. With fixed assets of more than 4702 million Malaysian Ringgit, company was founded more than 10 years to, we actively promote the imitation innovation, the introduction of the principle of combining innovation, independent innovation, enhance the management and technology of uninterrupted to drive the company's sustainable development!

All members will be firmly adhering to the "customer centered, striving for the people, and never stop" the spirit of enterprise. Focus on the domestic and foreign customers to provide "safe, energy-efficient, efficient" liquid (beverage) equipment and "high-quality, fast, personalized" service! Company was established so far, has been successfully for many domestic and foreign liquid (beverage) factory to provide quality equipment and perfect service, products are sold to many countries and regions around the world.

Hill machinery is a professional enterprise which integrates designing, producing, marketing, and offering the turn-key project to the customers. Based on many years of research and production experience, we absorb the advanced technology from the fellow-trade at home and abroad to major in producing all kinds of large and medium beverage machine. We are sincerely providing our customers the following products; automatic washing, filling, and capping assembly line for the purified water, spring water, fruit juice, lactic acid drink, carbonated drink, wine, flavoring, pulped drink, etc, the complete water treatment device and the automatic washing, filling, and capping assembly line for the 3-5gallon drink water.

HILL people will cherish the glorious dream of "do the world's most competitive liquid (drink) packaging machinery supplier", is committed to to providing with the most competitive solutions for the global liquid (drink) factory, to create maximum value for customers around the world!

The company will always take the "revitalization of national liquid (beverage) packaging machinery" as its mission, in order to achieve the transformation and upgrading of Malaysia from the "manufacturing power" to "manufacturing power" in the historical mission and hard work!
